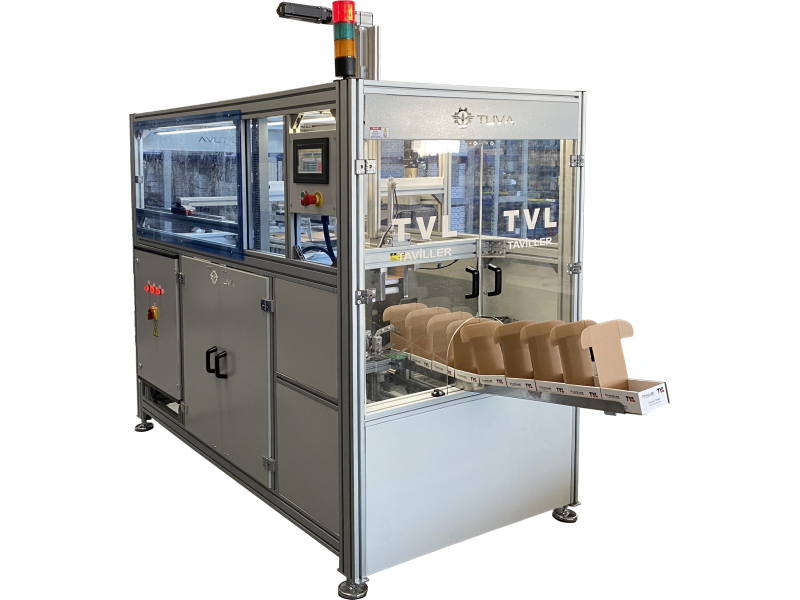

Full Automatic Box Making - Box Preparing Machine

Full Automatic Box Making - Box Preparing Machine
Model: TV-TF
Our custom-made box assembly - box preparation machine can prepare locked boxes or boxes with hot-melt glue for filling. Our machine, which has a high capacity and works fully automatically without the need for personnel, provides 100% efficiency. We provide engineering services by making special mechanical design and automation software suitable for our customers' own boxes.
  • Operator control system: 10” Touch PLC Screen
  • Capacity: min. 10-20 boxes / min. (Depends on box size and design)
  • Magazine capacity of empty boxes: 120-150 boxes
  • Door and safety switch sensors for occupational safety in machines
  • Required air pressure: 5 - 6 bar
  • Electricity: 380 V. 50-60 Hz. 1 Ph.
  • The machine is installed on site by our assembly team, given working training and delivered with usage and maintenance instructions
  • Machines - 2 YEARS - guaranteed.
  • Production from static painted or completely chromed stainless steel,
  • Cans can be adjusted in one machine, for different sizes,
  • Different size box transitions with a single button transition from the recipe with full automation system servo motors
  • Box gluing system: Hot Melt System
  • Automatic box size adjustment system; With servo motors and recipe registration system, automatic and fast transition to different size parcel settings is provided with a single click.
